PE 400
| Pulling force | 4000kN |
| Pipe diameter | 355-609 |
| Transport weight | 9000 kg |

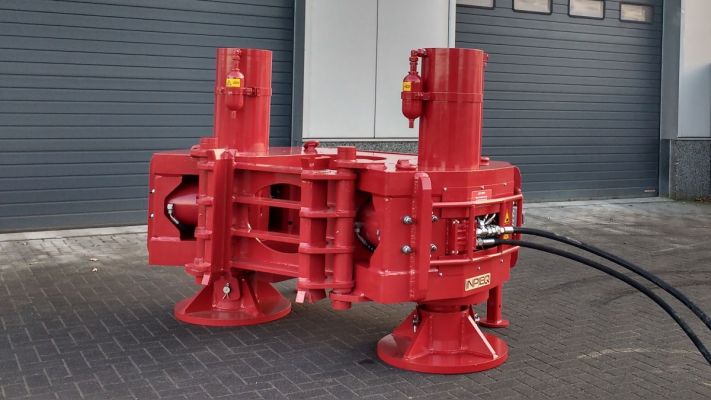

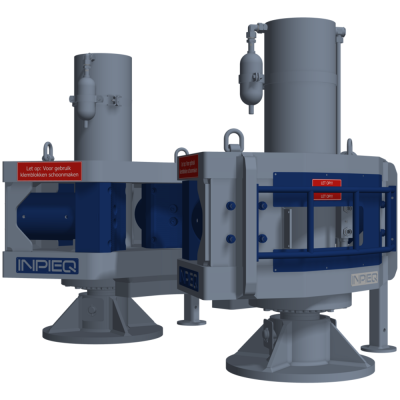

The PE 400 is our biggest pipe/casing extractor. This compact pipe/casing extractor effortlessly drags long pipes out of the ground.

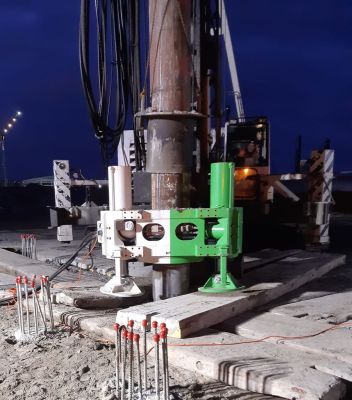

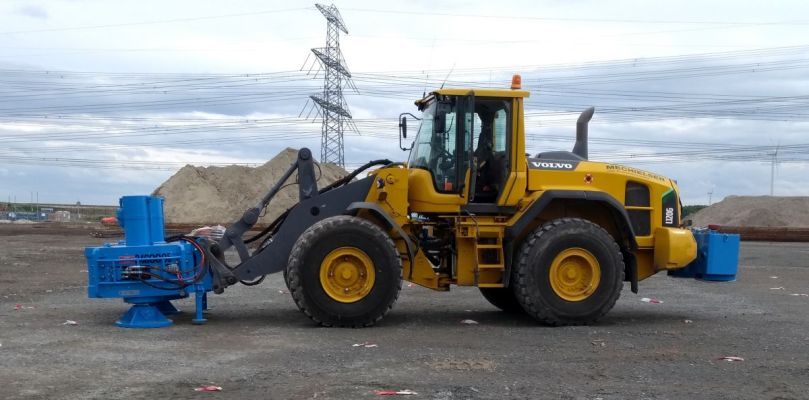

INPIEQ’s pipe/casing extractor can be mounted on a variety of piling and drilling rigs. We can also produce an adaptor so that the pipe/casing extractor can be used on any shovel. With this adaptor, the pipe/casing extractor can be transported from one piling or drilling rig to another. It ensures that the pipe/casing extractor can be moved quickly and easily.
The PE 400 is equipped with hydraulic clamping cylinders and tailor-made clamping blocks to ensure an optimal grip on the pipe. The hinging baseplates provide the correct transfer of force.
This pipe/casing extractor is electrically controlled and can be remotely operated.
We can build a pipe/casing extractor to the client’s exact wishes and specifications.
